How to Replace the Check Valve in an Electric Steam Generator
If you are working with electric steam generators, knowing how to properly replace a check valve is essential for maintaining the efficiency and safety of your equipment. This guide will walk you through the entire process, from identifying issues to completing the replacement.
Preparation and Safety Measures

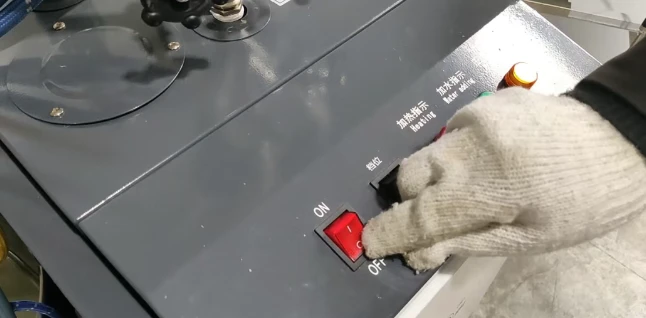

1. Power Disconnection: Before starting any maintenance, ensure that the steam generator is completely powered off. Hang a "Do Not Close the Switch" warning sign to prevent accidental power restoration.
2. Cooling Down: Allow the generator to cool down until its temperature drops below 40°C. This step is crucial to avoid burns and ensure safe handling.
3. Personal Protective Equipment (PPE): Always wear heat-resistant gloves, safety goggles, and insulated shoes to protect yourself from potential hazards.
Identifying and Locating the Check Valve
1. Inspect for Abnormalities: Before disassembly, check for any unusual water accumulation in the generator. If severe water carryover is detected, stop the process and investigate further.

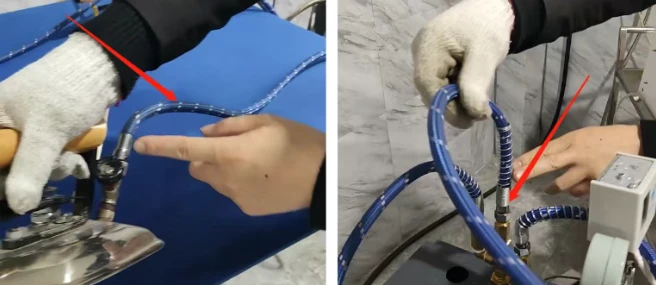

2. Locate the Check Valve: Trace the return water pipe from the generator in the reverse direction to find the check valve connection
Disassembly and Inspection

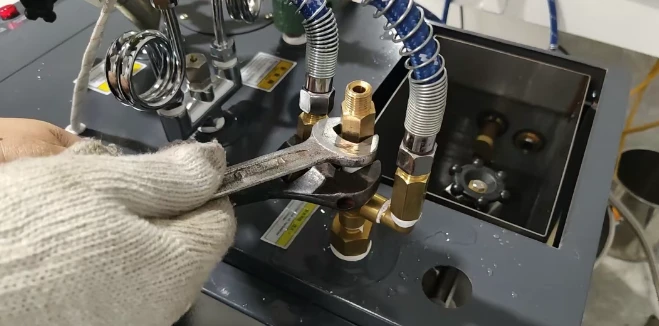

1. Remove the Return Water Pipe: Use appropriate tools to carefully detach the return water pipe connected to the check valve.
2. Test the Check Valve: Check for gas leakage from the check valve. If gas is escaping, this indicates a failure, and the check valve needs to be replaced.
Replacement Procedure

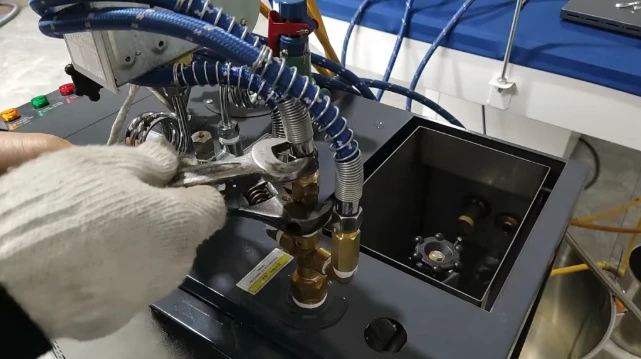

1. Remove the Old Check Valve: Use tools to carefully remove the faulty check valve.
2. Flush the System: Open the exhaust valve slightly and flush for about 10 seconds to clear any debris.

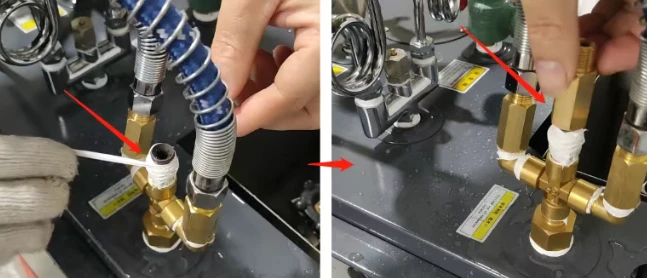

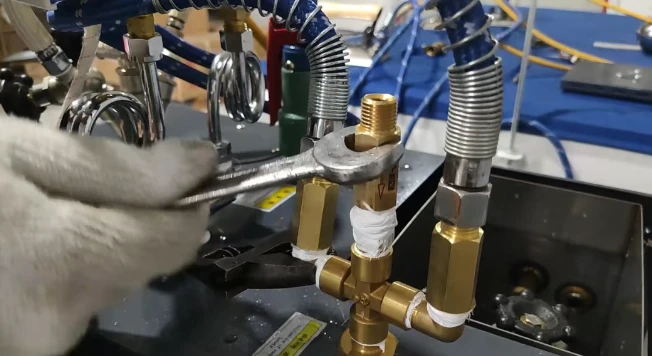

3. Install the New Check Valve: Wrap the threads of the new check valve with PTFE tape (plumber's tape) to ensure a tight seal. Securely install the new check valve and tighten it with a wrench.
Reassembly and Testing
1. Reconnect the Return Water Pipe: Ensure all connections are secure and properly aligned.
2. Conduct a Leak Test: Restore power to the generator and perform a thorough leak test to verify that the new check valve is functioning correctly.
By following these steps, you can effectively replace the check valve in your electric steam generator. Regular maintenance and prompt replacement of faulty components are key to ensuring the safe and efficient operation of your equipment.
