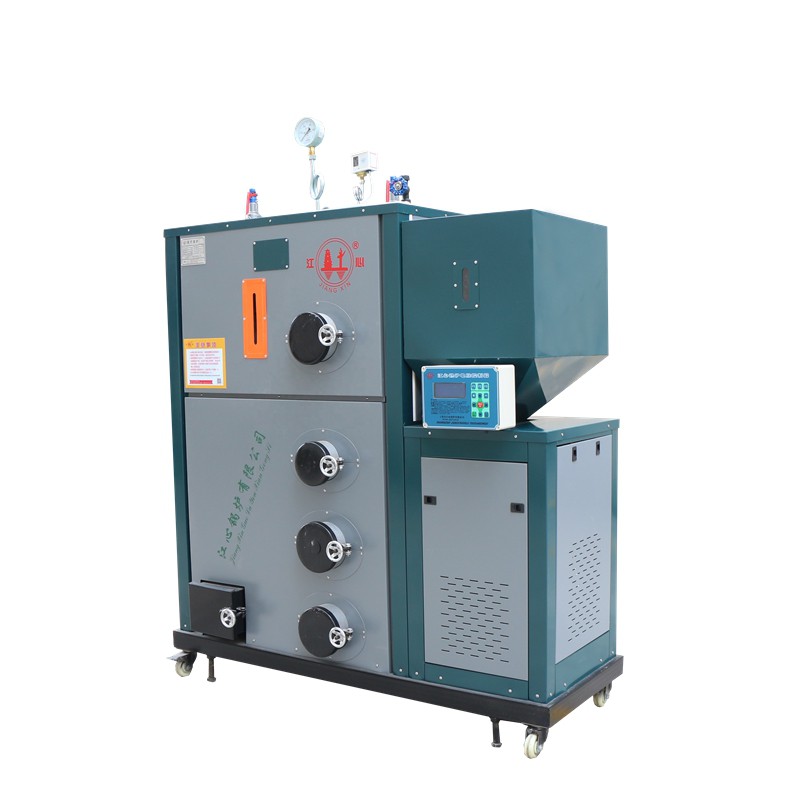

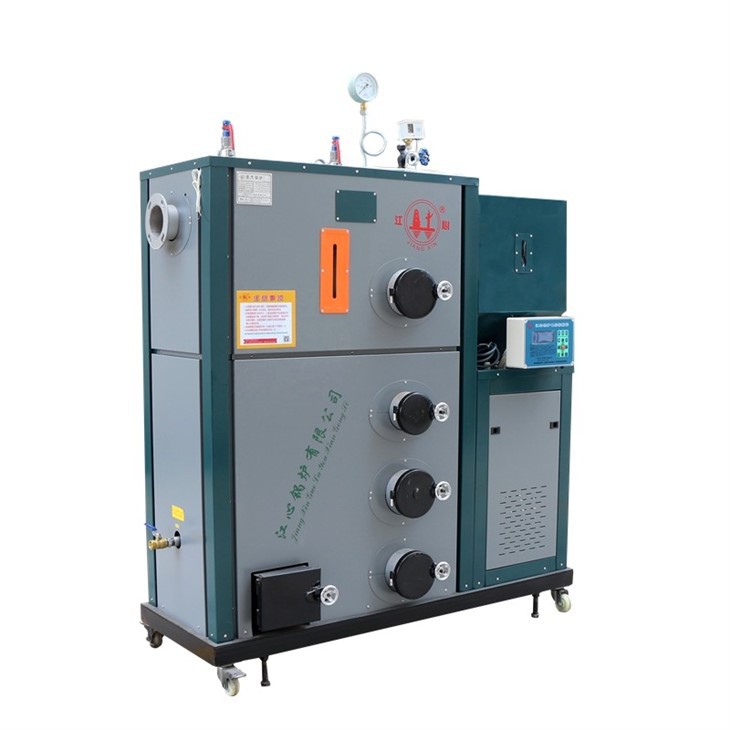

Biomass Boiler
Your Professional Biomass Boiler Supplier！
Shangrao Jiangxin Boiler Co., Ltd. is a B-class boiler manufacturing enterprise integrating research and development, design, manufacturing, processing, sales and service. At present, there are nearly 150 kinds of boiler products, steam generators, clothing ironing equipment and other supporting products, such as biomass fired pellet boilers, oil-fired boilers, gas-fired boilers, electric heating boilers, organic heat carrier boilers and other major series. Among them, the steam boiler series products have been sold abroad to 45 countries, are unanimously recognized by customers.
Why Choose Us
Our Factory
Our company covers an area of 85,000 square meters, with a total construction area of 110,000 square meters. We currently have 300 employees, including 26 R&D and design personnel.
High Quality
More than 100 kinds of steam equipment, used in catering, hotels, cantons, bathing, food manufacturing, factories, etc.
ODM/OEM
As a leading steam generator manufacturer, we understand that each client's needs are unique. Therefore, we offer a range of customized services designed to meet specific requirements and enhance their user experience.
Our Services
We offer professional technical support. If you have any questions, please contact us online or email us. We guarantee a prompt response!
All purchases of our products come with a one-year warranty and lifetime maintenance.
Parameters
|
Model |
LHG-0.2-0.7-BMF |
|
Rated steam capacity |
0.2t/h |
|
Rated working pressure |
0.7 MPa |
|
Saturated steam temperature |
171 ℃ |
|
Feed water temperature |
20 ℃ |
|
Host heating area |
4.8㎡ |
|
Economizer heating area |
3.58㎡ |
|
fuel |
Biomass pellets |
|
Water volume |
258 Liters |
|
fuel consumption |
37.2 kg/h |
|
Thermal efficiency |
≥ 80% |
|
Shipping dimensions |
1820mm*1000mm*2550mm |
|
weight |
1040 kg |
Advantages of Biomass Boiler
Advanced Steam Generation Technology
Our biomass boiler utilizes advanced steam generation technology, allowing for efficient conversion of biomass into high-quality steam. This ensures optimal energy utilization and reliable steam supply for various industrial applications.
High Thermal Efficiency
Designed with precision, our biomass boiler boasts high thermal efficiency, resulting in reduced fuel consumption and operational costs. It maximizes the conversion of biomass into steam, providing exceptional energy efficiency for your operations.
Robust and Reliable Performance
Built to last, our biomass boiler delivers robust and reliable performance, even under demanding operating conditions. It is engineered with high-quality components to ensure continuous steam generation, minimizing downtime and maximizing productivity.
Versatile Application Range
Our biomass boiler is suitable for a wide range of applications, including power generation, heating, and industrial processes. Whether you need steam for electricity production, heating applications in commercial buildings, or industrial processes, our boiler can meet your specific requirements.
Low Emissions and Environmental Sustainability
With a strong commitment to environmental sustainability, our biomass boiler emits significantly fewer pollutants compared to traditional steam generation methods. By reducing greenhouse gas emissions, you can contribute to a cleaner and healthier environment.
Smart Control Systems
Equipped with smart control systems, our biomass boiler offers precise control over steam generation processes. This ensures optimal performance, energy efficiency, and operational flexibility, allowing you to adapt to changing steam demands.
Applications of Biomass Boiler
Power Generation
Generate electricity by utilizing steam turbines driven by the biomass boiler.
Heating Systems
Provide steam for district heating networks, ensuring efficient and eco-friendly heat distribution.
Food processing
Steam is essential for cooking, sterilization, and other processes in the food industry.
Manufacturing
Steam plays a crucial role in various manufacturing processes, such as textile production, paper manufacturing, and chemical processing.
Components of Biomass Boiler
Combustion system:The combustio n system is the core of the biomass boiler. It turns the heat from burning biomass fuel into hot water, steam, or hot air. If a biomass burner is used, the system has a combustion chamber, burner, fuel supply system, and other parts. These parts ensure that the biomass can burn fully to use energy well.
Boiler body:The boiler body is the main structure of the biomass boiler. It carries the combustion system and other extra equipment. This includes the water circulation system, steam generator, and so on. The boiler body has a boiler tube, furnace, flue, and water pipe. It is a pressurized container that can handle high temperatures and pressure.
Water circulation system:The system circulates hot water or steam from the boiler. It also transfers heat to objects or equipment that need to be heated. The system has components like water pumps, pipes, and heat exchangers. They ensure that heat can be well transferred and used.
control system:The control system is a smart manager for the biomass boiler. It monitors and controls the boiler to keep it safe and stable. The system usually has control panels, sensors, actuators, and other parts. They can monitor temperature, pressure, flow, and other parameters in real-time. They can also regulate and control based on the set control strategy.
Flue gas treatment system: The system treats flue gas. The gas is produced by combustion. It reduces pollutant emissions and the impact on the environment. The system usually includes equipment such as a dust collector, desulphurization device, and denitrification device. They can clean the exhaust gas well and meet environmental rules.
Types of Biomass Boilers
Wood pellet boilers are among the most common types of biomass boilers. They use small, cylindrical pellets made from compressed sawdust and wood shavings. These pellets are easy to store and transport and burn efficiently with low moisture content.
Wood chip boilers use chipped wood as fuel. These chips are larger than pellets and can be made from various wood sources, including waste wood from forestry operations. Wood chip boilers are ideal for larger installations with a steady supply of wood chips.
Log boilers use traditional firewood logs as fuel. They are suitable for areas where firewood is readily available and inexpensive. Log boilers are often used in rural or off-grid locations.
CHP biomass boilers generate both heat and electricity from biomass fuels. They are highly efficient and used in applications where heating and power generation are needed, such as in industrial settings or district heating schemes.
Biomass gasification boilers convert biomass into a gas (syngas) that is then burned to produce heat. This process can be more efficient and produce fewer emissions than direct combustion.
Fuel Types Used in Biomass Boilers
Wood Pellets
Wood pellets are made from compressed sawdust and wood shavings. They have a high energy density and low moisture content, making them an efficient and clean-burning fuel. Wood pellets are widely used in residential and commercial biomass boilers.
Wood Chips
Wood chips are larger pieces of wood produced from chipping branches, logs, or forestry residues. They are less processed than pellets and can vary in size and moisture content. Wood chips are suitable for larger installations with consistent heat demands.
Logs
Logs are traditional firewood pieces used in log boilers. They are typically sourced from local woodlands and are a cost-effective fuel option for those with abundant wood resources. Logs require manual handling and frequent loading.
Agricultural Residues
Agricultural residues, such as straw, corn stover, and rice husks, can also be used as biomass fuels. These residues are often by-products of farming operations and provide a sustainable fuel source for biomass boilers.
Food Waste
Some biomass boilers are designed to burn food waste and other organic materials. These boilers help divert waste from landfills and convert it into useful heat. They are commonly used in waste-to-energy facilities.
Energy Crops
Energy crops, such as switchgrass, miscanthus, and willow, are specifically grown for biomass fuel. These crops are fast-growing and provide a renewable source of energy. They are typically used in larger biomass systems.
Packaging and Shipping
|
Package |
Inner packing: Foam film and molded foam packing |
|
Sampling time |
6-15 Days |
|
Production time |
15-30 Days after receiving deposit |
|
Delivery Terms |
FOB, CFR, CIF, Express |
|
Payment currency |
Dollar |
|
Payment Methods |
T/T (30% deposit against bl copy 70%) |
FAQ
We're professional biomass boiler manufacturers and suppliers in China, specialized in providing high quality custom service. Please feel free to wholesale cheap biomass boiler from our factory. For more information, contact us now.
