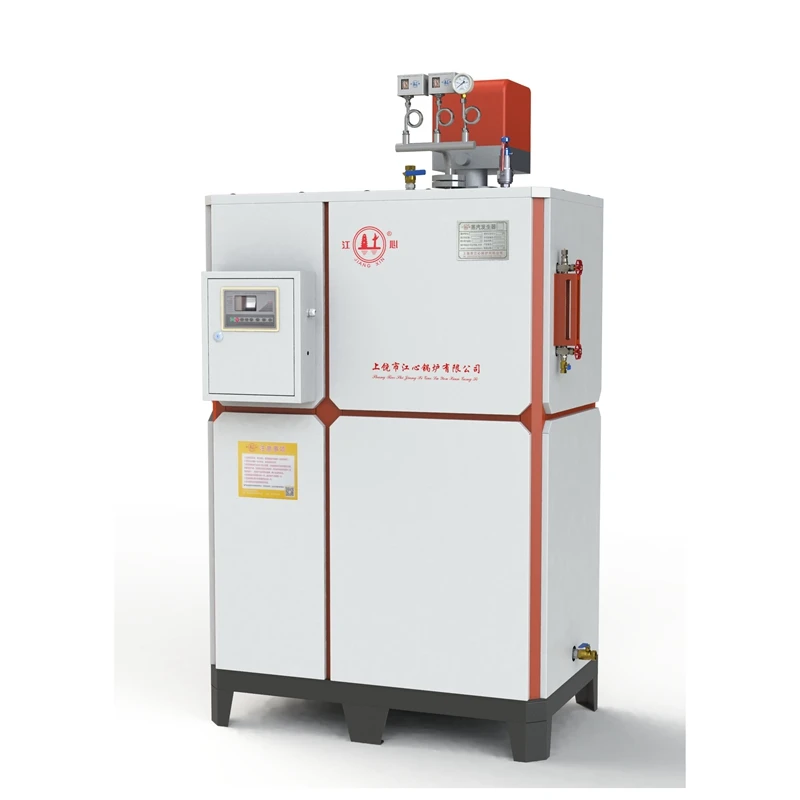

A natural gas steam generator is a type of steam equipment that uses natural gas as its primary fuel, which generates heat by burning natural gas and heating water to boiling to produce steam.
Natural gas steam generator is widely used, LHS series vertical fuel oil (gas) steam boiler in the use of fuel, light oil, natural gas, liquefied petroleum gas can be selected. Not only a variety of fuel options, its use is also very wide, in hot water supply, high temperature disinfection, clothes washing and drying, cooking process, drying, waste disposal it has brought great convenience.
|
Item Type |
LHS0.2-0.7-Y/Q |
LHS0.3-0.7-Y/Q |
LHS0.5-0.7-Y/Q |
|||
|
Rated Evaporation (t/h) |
0.2 |
0.3 |
0.5 |
|||
|
Rated Working Pressure(MPa) |
0.7 |
|||||
|
Saturated Steam Temperature(℃) |
171 |
|||||
|
Steam Outlet(DN) |
25 |
40 |
||||
|
Sewage Outlet (DN) |
25 |
|||||
|
Safety Valve Port(DN) |
2×15 |
|||||
|
Water Intake(DN) |
25 |
|||||
|
Exhausted Gas Temperature(℃) |
108/112 |
100/101 |
95/100 |
|||
|
Water Volume(L) |
48 |
49 |
48.8 |
|||
|
Designed Fuel |
Light Oil or Natural |
|||||
|
Fuel Consumption(kg/h,Nm3/h) |
13.3 |
16 |
19.9 |
24 |
33 |
40 |
|
Designed Efficiency |
≥92 |
|||||
|
Packing Size (mm) |
1370×1000×1950 |
1600×1200×2100 |
1850×1300×2380 |
|||
|
Weight(kg) |
800 |
1250 |
1660 |
|||
In schools, it provides heat for cooking and hot water supply in the school canteen. In industrial production (such as the paper and paper products industry), it can be used for heat treatment and processing of pulp, and the subsequent paper production process is closely related to it. In the washing industry, it is used to heat water and dry clothes.
LHS series vertical oil (gas) steam boiler in the choice of fuel oil and gas can be selected to meet your different needs. At the same time, its control system is adjustable, so that your operation is more diversified. And the structure of this steam boiler is reasonable, it adopts the top combustion mode, the heating area is large, the fuel consumption is low, and the hot sale can meet the requirements of the national standard. At the same time, its quality is excellent, the inner liner is made of seamless steel pipe for boiler, the main weld is welded automatically, and the non-destructive testing is carried out to effectively guarantee the quality of the product. In order to improve the safety of users using the product, we also set up a supporting safety system, anti-dry burning protection; Water shortage protection; Water time-out protection; Water level meter lighting and burner flameout protection not only ensure the safety of the product, but also provide protection for your use. In addition, the boiler operating status, steam pressure, steam temperature, alarm information can be displayed on the LCD screen at a glance.
