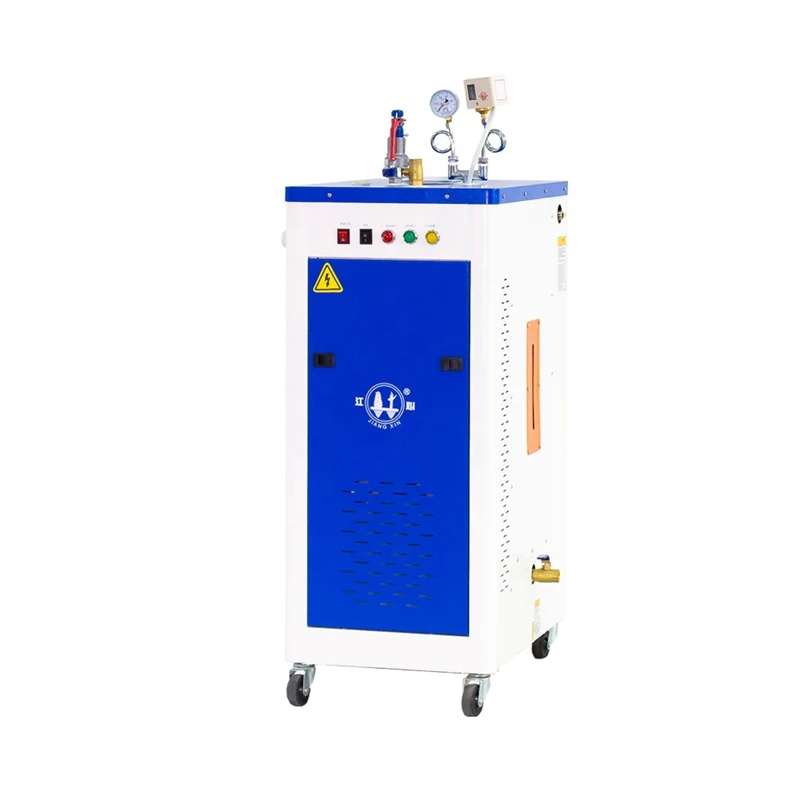

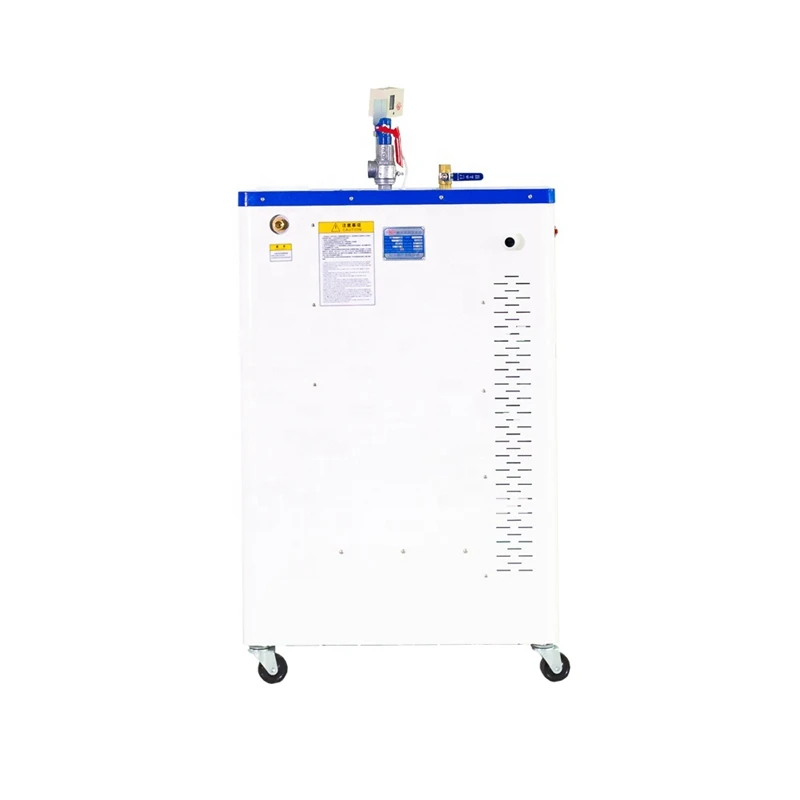

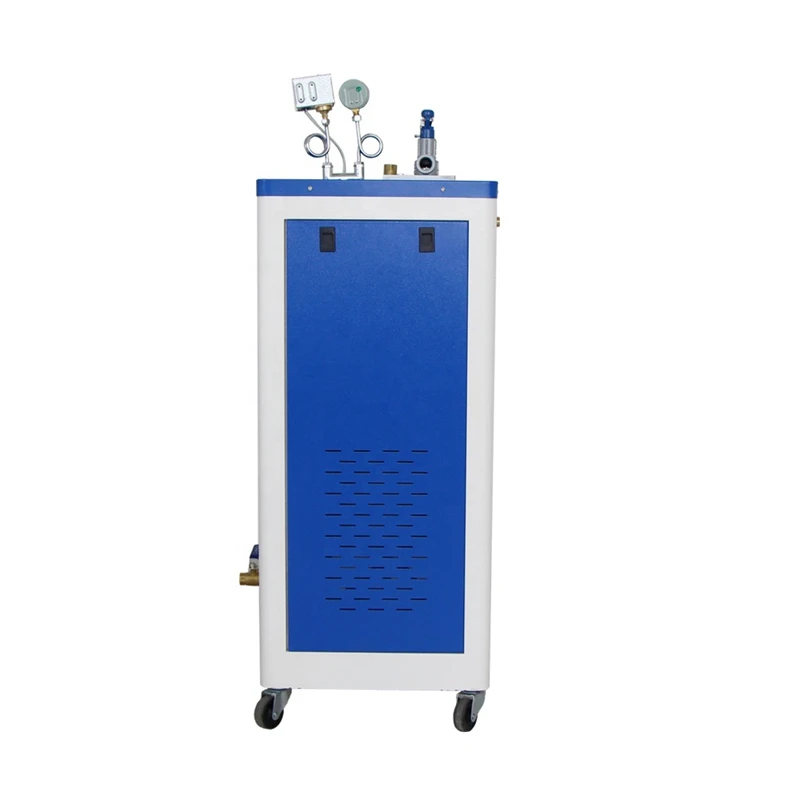

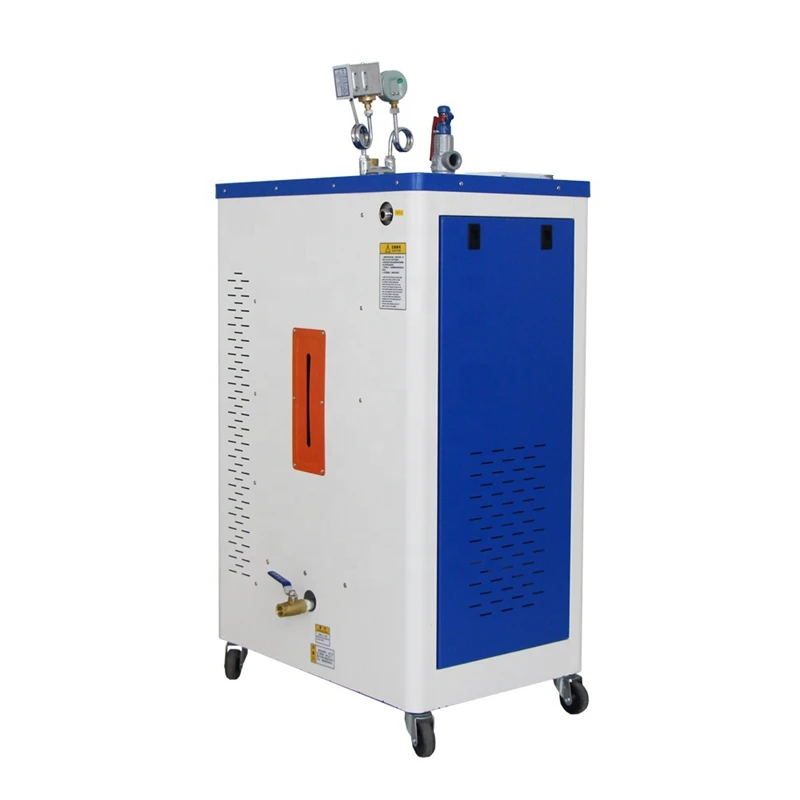

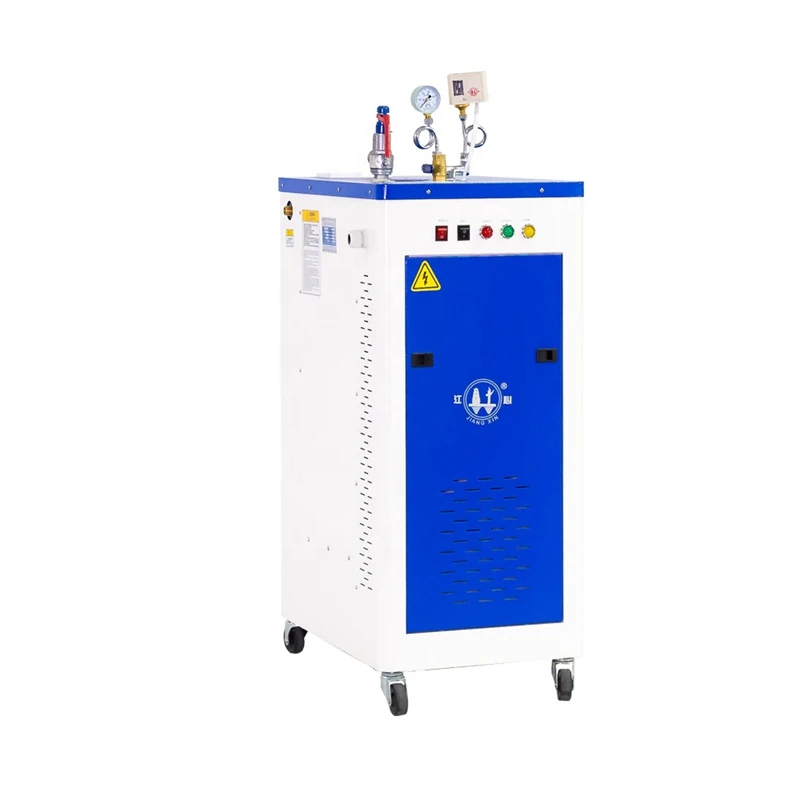

The lab steam generator is an essential piece of equipment in scientific and industrial settings.
Lab steam generators are characterized by their compact design, fast heating capabilities, and the ability to produce steam with controllable pressure and flow rate. These generators prioritize safety with features such as automatic shutoff and overpressure valves, while also focusing on energy efficiency. They are versatile in that they can work with deionized water to suit sensitive processes, requiring minimal maintenance due to their straightforward construction.
|
Item Type |
QF-3/6KW |
QF-6/9KW |
QF-3/6/9KW |
QF-6/12KW |
QF-9/18KW Two pipes |
QF-12/24KW Two pipes |
QF-18/36KW Two pipes |
|
Rated evaporation(kg/h) |
8 |
13 |
13 |
17 |
25 |
30 |
50 |
|
Rated voltage(V) |
220/380 |
220/380 |
220/380 |
380 |
380 |
380 |
380 |
|
Rated pressure(MPa) |
0.4 |
0.4 |
0.4 |
0.4 |
0.4 |
0.4 |
0.4 |
|
Saturated steam temperature(℃) |
151 |
151 |
151 |
151 |
151 |
151 |
151 |
|
Water volume(L) |
14 |
16 |
16 |
16 |
25 |
25 |
25 |
|
Packing size(L) |
620×430×1050 |
700×450×1130 |
|||||
|
Hauled weight (kg) |
61 |
62 |
62 |
65 |
82 |
84 |
85 |
Laboratory steam generators offer a range of advantages that make them invaluable for various scientific and industrial applications. Their compact size allows for easy placement within confined laboratory spaces, while their rapid heating capability ensures swift production of steam, essential for experiments that demand precise timing. The adjustable controls on these generators provide the necessary flexibility to fine-tune the pressure and flow rate of the steam, catering to the specific needs of different processes.
The QF steam generator is fast enough to convert water into steam, providing immediate energy supply and greatly improving energy efficiency. Upgraded tank process, built-in water tank pump. The inner liner uses Q235 steel plate, the inner liner process is 380℃ high temperature anti-corrosion inner liner, high thermal efficiency, long service life. Water accessories use high pressure vortex pump, water faster. Energy saving and environmental protection: Compared with traditional coal-fired boilers, modern steam generators usually have higher thermal efficiency and lower emission levels, which meet environmental requirements. Intelligent control: QA21 steam generator is equipped with advanced control system to achieve intelligent operation and ensure stable output and quality of steam.
