A vertical steam generator is a device capable of producing steam, usually used to provide thermal energy for industrial or commercial use.

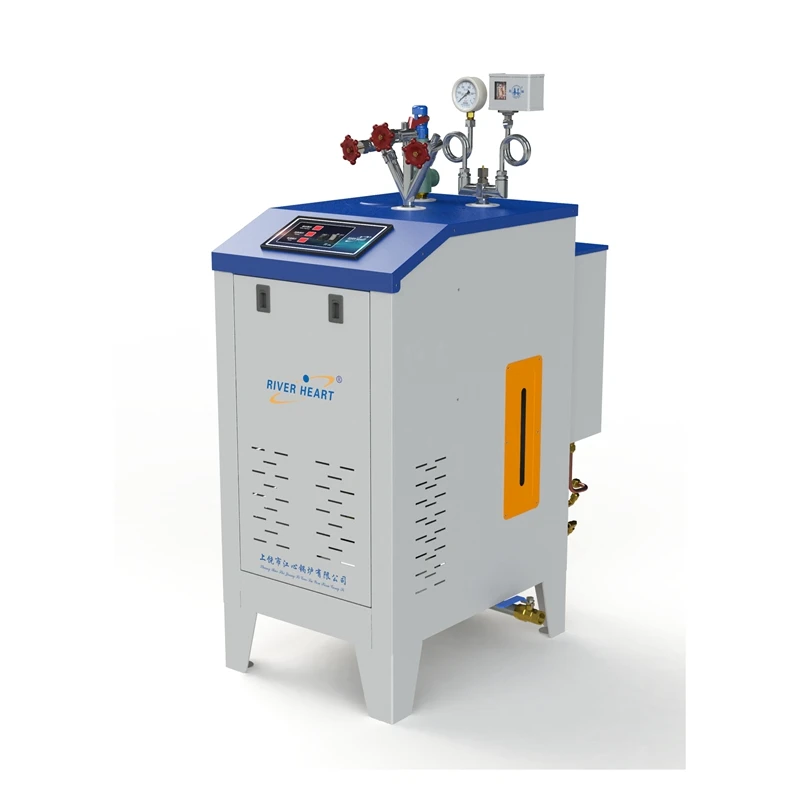

RD21 Vertical steam generator has compact structure, small footprint, easy installation and high safety performance. Small space footprint: Due to its vertical design, compared with other types of steam generators, it has advantages in space utilization, especially for places with limited space. Easy installation: The design simplifies the installation process, making the handling and placement of equipment more convenient and fast. Widely used: Steam generators are widely used in garment factories, dry cleaners, ironing industry service industries and other places to provide the necessary heat or steam.
|
Item Type |
RD21-3KW |
RD21-3/6KW |
RD21-3/6/9KW |
RD21-6/12KW |
RD21-9/18KW |
RD21-12/24KW |
RD21-18/36KW |
RD21-24/48KW |
|
Rated Power(KW) |
3 |
3/6 |
3/6/9 |
6/12 |
9/18 |
12/24 |
18/36 |
24/48 |
|
Rated evaporation(kg/h) |
4 |
8 |
13 |
17 |
25 |
30 |
50 |
70 |
|
Rated Voltage(V) |
220/380 |
220/380 |
220/380 |
380 |
380 |
380 |
380 |
380 |
|
Rated Working Pressure(MPa) |
0.4 |
0.4 |
0.4 |
0.4 |
0.4 |
0.4 |
0.4 |
0.4 |
|
Steam Temperature(℃) |
151 |
151 |
151 |
151 |
151 |
151 |
151 |
151 |
|
Water Volume(L) |
14 |
14 |
16 |
16 |
25 |
25 |
28 |
28 |
|
Designed Efficiency(％) |
≥97 |
≥97 |
≥97 |
≥97 |
≥97 |
≥97 |
≥97 |
≥97 |
|
Weight(kg) |
45 |
45 |
70 |
70 |
70 |
70 |
70 |
90 |
|
Packing Size(mm) |
630×400×830 |
690×425×825 |
730×460×870 |
730×460×870 |
770×510×920 |
770×510×920 |
770×510×920 |
810×550×1000 |
Steam is an indispensable energy carrier in industrial production, RD21 steam generators can provide a steady stream of energy for industrial production, such as food processing, textile printing and dyeing. In the garment ironing industry, it ensures the stability of the ironing effect by providing a constant steam temperature and pressure, providing a more refined and gentle care for the garment, thereby extending the service life of the garment and enhancing the wearing experience.
This vertical steam generator is a standard energy-saving steam generator, its thermal efficiency can reach 99.49%, close to 100% loss-free, energy efficient, can reduce your cost of use, in clothing ironing, using our steam generator, 1 iron can save you one degree of electricity per hour. The inner liner material is made of Q235B stainless steel, and the inner liner process is 380℃ high temperature anti-corrosion and environmental protection inner liner. While focusing on improving thermal efficiency and product service life, we also take into account environmental protection. For the user experience, the RD21 steam generator is equipped with multiple protection, automatic control function, safe and stable. It has sufficient steam production, stable steam pressure and pure steam. And the operation is convenient, so that you can use more convenient. At the same time, it also uses water and electricity isolation design, for your use of safety escort. And choose our steam generator, we will also provide you with perfect after-sales service, so that your after-sales worry.
