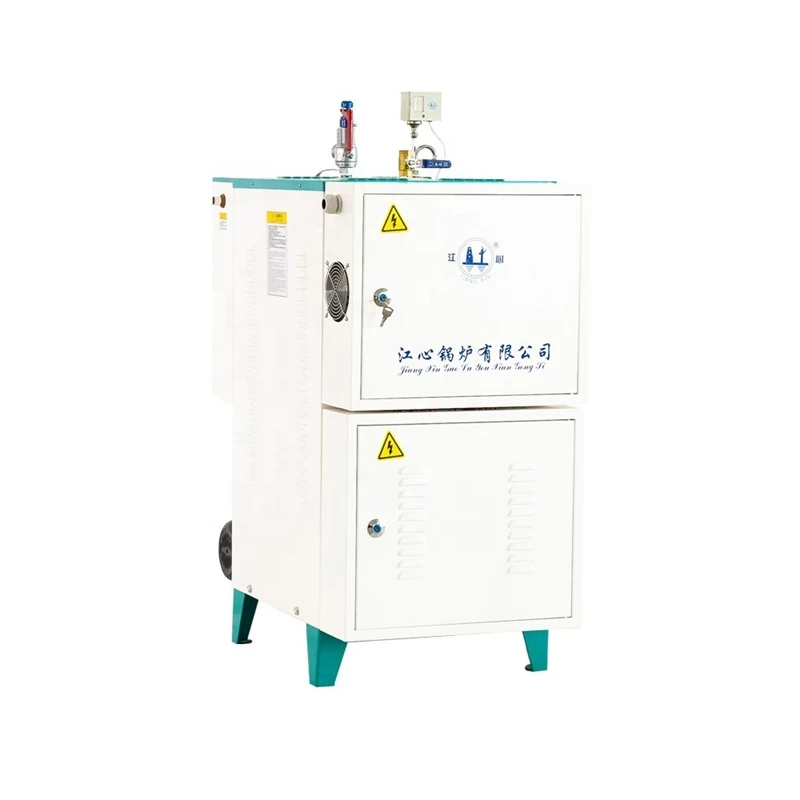

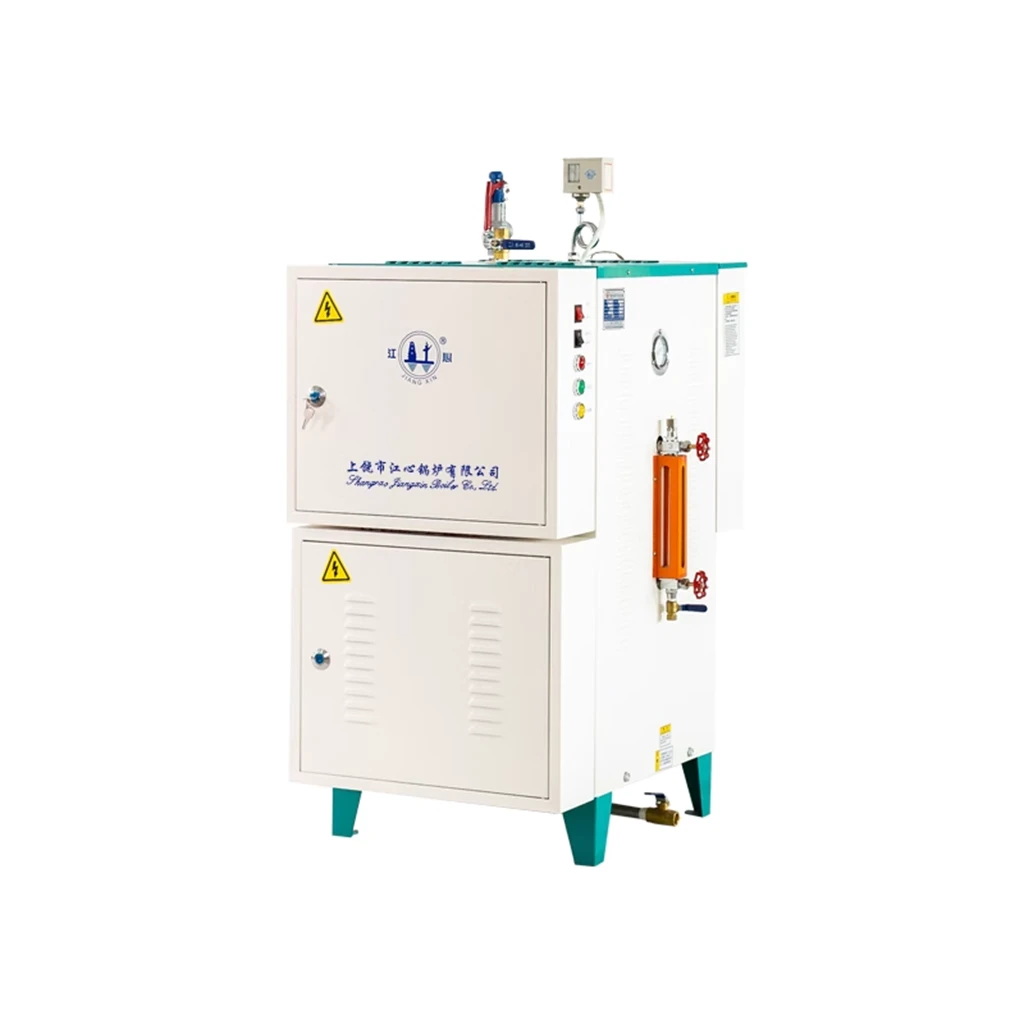

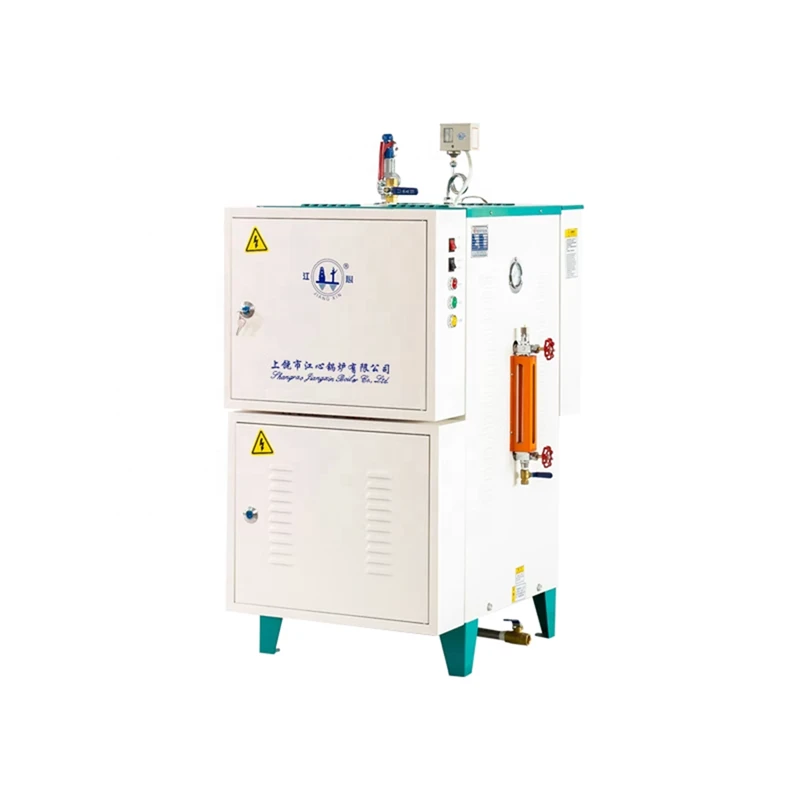

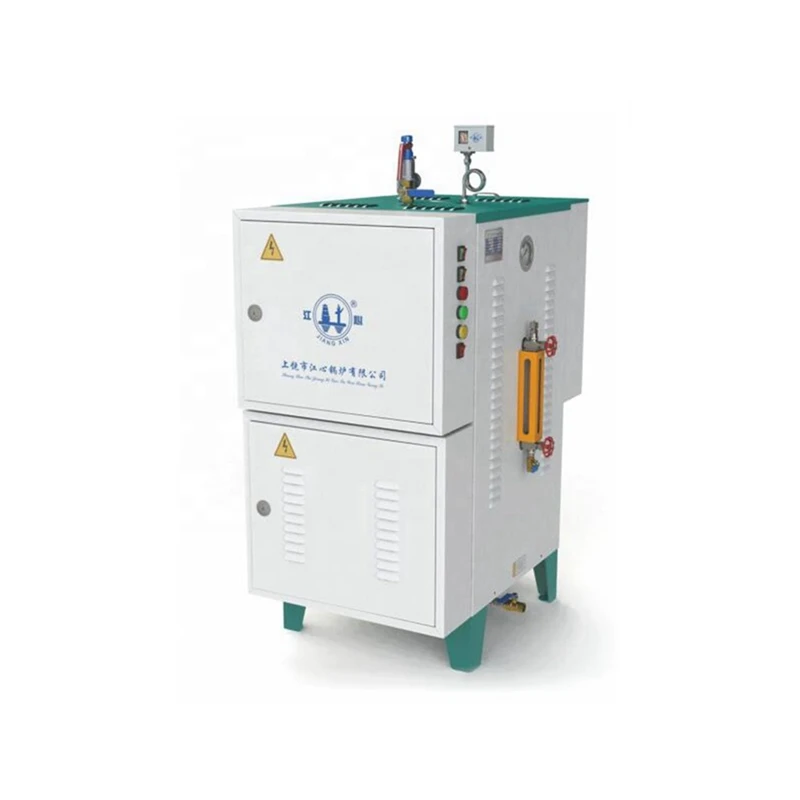

A steam generating boiler is a device that uses fuel or other energy sources to heat water into steam or hot water, and is widely used in industrial and commercial fields.
Steam generating boilers are widely used in industrial and commercial fields because of their high efficiency and energy saving, excellent environmental performance, intelligent control, safety and reliability. It can quickly generate steam without preheating, occupies a small area, and is suitable for a variety of places. In addition, its advanced combustion technology and heat transfer design reduce operating costs, while multiple safety measures ensure the stability and service life of the equipment. These characteristics make steam generating boilers ideal for garment factories, dry cleaners, restaurants and other places.
|
Item Type |
QX-12/24KW |
QX-18/36KW |
QX-24/48KW |
|
Rated Evaporation(kg/h) |
30 |
50 |
70 |
|
Rated Voltage(V) |
380 |
380 |
380 |
|
Rated Working Pressure (MPa) |
0.4 |
0.4 |
0.7 |
|
Saturated Steam Temperature(℃) |
151 |
151 |
171 |
|
Water Volume(L) |
28 |
28 |
28 |
|
Packing Size(mm) |
860×630×1070 |
||
|
Weight(kg) |
110 |
113 |
115 |
QX type steam generating boiler plays an important role in various industries because of its high efficiency and energy saving, superior environmental performance, intelligent control and safety and reliability, and its application fields are very wide.
Industrial field: In chemical, pharmaceutical, food processing and other industrial fields, steam generation boilers are used to provide the heat and power required for the process. Commercial field: In hotels, restaurants, shopping malls and other commercial places, steam generation boilers are used for heating, cooling, hot water supply and so on. In the field of agriculture: in agricultural facilities such as greenhouses and animal husbandry, steam generation boilers are used to regulate temperature and humidity, promote crop growth or speed up feed fermentation. Medical field: In hospitals, clinics and other medical institutions, steam generation boilers are used to disinfect instruments and clean the environment. Textile field: In textile factories, garment factories and other places, steam generation boilers are used to provide high temperature steam for dyeing, drying and other processes.
QX electric heating steam generator adopts automatic electric control operation, stable performance: water addition, water supply, heating start and stop, steam pressure stability, automatic operation. Boiler steel inner liner, durable pressure: National B-class boiler manufacturing qualification. Multiple security protection: water shortage, overpressure, water timeout and other multiple security protection. Gear switching function: more than 6kW power shift setting, more flexible gas consumption. Water and electricity separation design, multi-change combination, equipment use and home safety, while more efficient.
