Biomass Thermal Oil Boiler
video

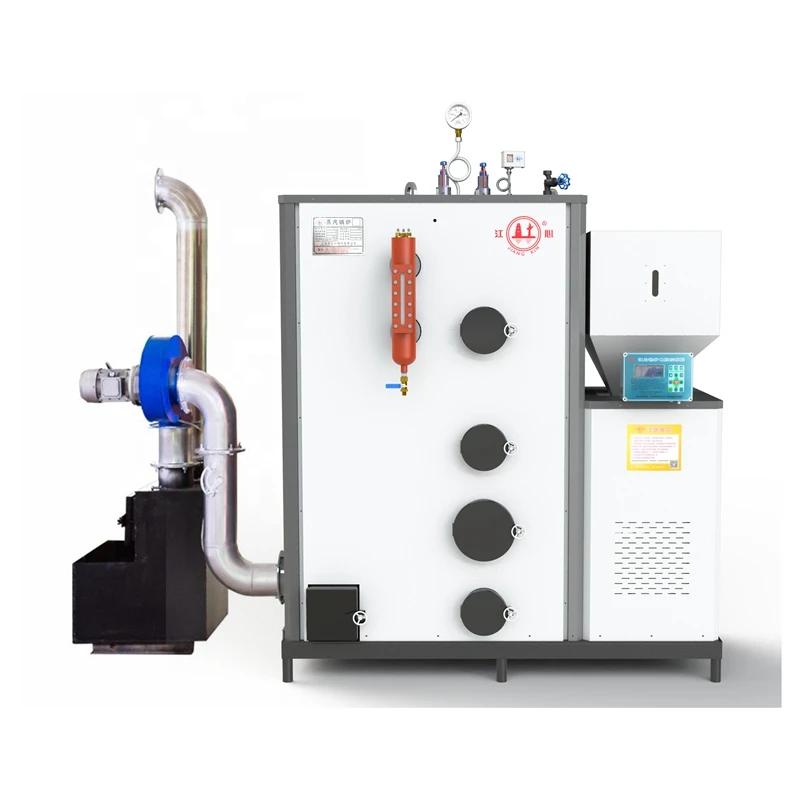

Biomass Thermal Oil Boiler

Biomass Thermal Oil Boiler

As a clean and renewable way of energy utilization, biomass thermal oil boiler has significant advantages in reducing environmental pollution and saving energy costs, and is an important tool to promote sustainable development and environmental protection.
Send Inquiry

Product Introduction

As a clean and renewable way of energy utilization, biomass thermal oil boiler has significant advantages in reducing environmental pollution and saving energy costs, and is an important tool to promote sustainable development and environmental protection.

Biomass thermal oil boiler provides an economical and practical solution for small and medium-sized users in terms of hot water supply and heating due to their fuel renewability, environmental protection, cost effectiveness and convenient operation, especially in areas rich in agricultural and forestry waste resources.

Item

Type

LHG0.05-0.4/0.7-BMF

LHG0.03-0.4/0.7-BMF



Rated Evaporation (t/h)

0.05

0.03



Rated Working Pressure(MPa)

0.4/0.7

0.4/0.7



Saturated Steam Temperature(℃)

151/171

151/171



Steam Outlet(DN)

20

15



Sewage Outlet (DN)

20

20



Safety Valve Port(DN)

20

15



Water Intake(DN)

15

15



Exhausted Gas Temperature(℃)

1210

190



Water Volume(L)

27

26



Designed Fuel

Light Oil or Natural



Fuel Consumption(kg/h)

9

5.5

Designed Efficiency

≥82

≥82



Packing Size (mm)

1260×450×1640

1180×500×1400



Weight(kg)

330

130





With the support of national policies and the advancement of technology, more and more enterprises and individuals may choose biomass boilers as an alternative to traditional coal-fired boilers to reduce environmental pollution and respond to the national environmental protection policy. LHG biomass boilers have a broad customer base. Because of its advantages of energy saving, environmental protection and high efficiency, it is widely used in many industries and fields. Heating: In home heating, commercial buildings, industrial plants and other places, biomass boilers can burn wood particles, straw, waste wood and other biomass fuels to provide heat energy for air conditioning and heating systems. Industrial heating: In many industrial processes, a large amount of thermal energy is required to heat water or produce steam. Biomass boilers can play an important role in these applications, providing the high temperature heat energy required. Environmental protection: Because the biomass boiler uses renewable biomass fuel, it has a positive effect on reducing greenhouse gas emissions and mitigating global warming. Clothing industry: Dyeing, drying and other heat treatment processes in the clothing manufacturing process are crucial. These processes require a stable heat source to ensure production efficiency and product quality.



product-800-800
product-800-800
product-800-800
product-800-800

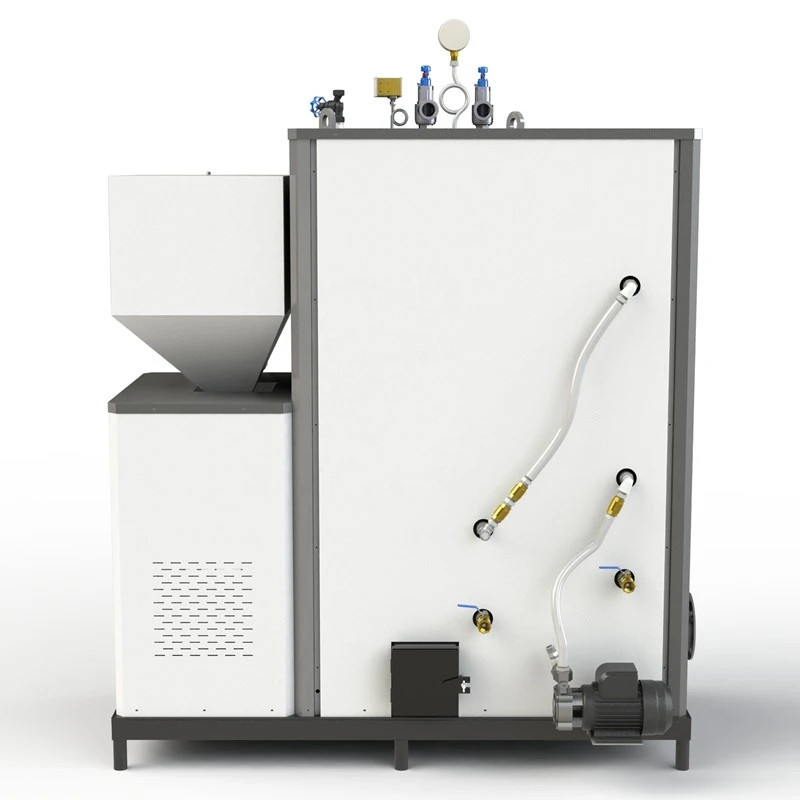

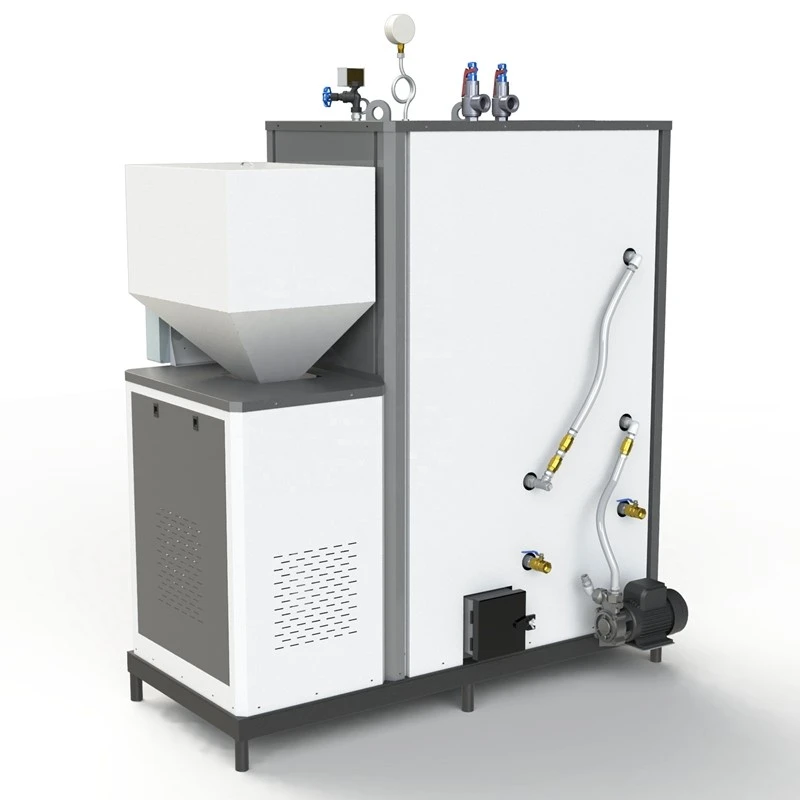

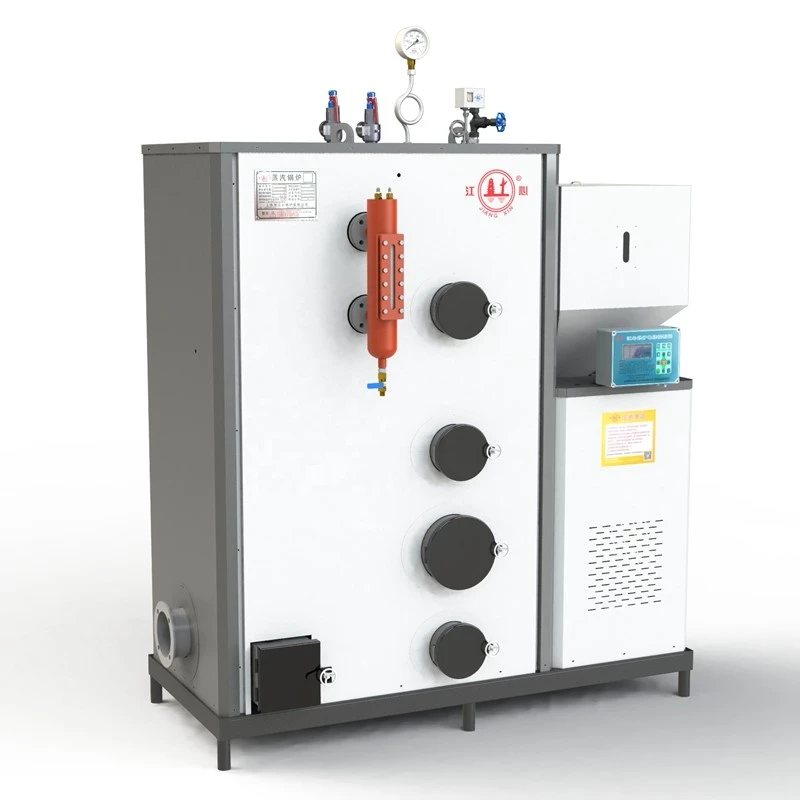

LHG biomass thermal oil boiler economy, energy saving, low cost and consumption reduction: five return heat cycle design, large heating area, high fuel utilization rate, sufficient steam production, thermal efficiency in line with national standards. Excellent quality, no worries after sale: the inner liner is made of seamless steel pipe for boiler, the main weld is welded automatically, and the product quality is effectively guaranteed by non-loss detection. System stability and safety protection: microcomputer operating system, water shortage protection, overpressure protection, water timeout protection, anti-dry burning, anti-tempering protection and other multiple security guarantees. Intelligent operation, easy to use: one key start and stop, automatic ignition, automatic water supply, (external transparent glass water level gauge water level is clearly visible) automatic mechanical feeding, according to the demand for steam automatically adjust the feeding amount, simple operation, no full-time fireman, saving time and labor, saving part of the labor cost. Environmental protection and clean, low emissions: air supply oxygen-rich three-dimensional combustion, fuel combustion, clean combustion, emissions in line with GB13271-2014 standards.
